Zipper Fin Heat Pipe Heat Sink
Product Overview

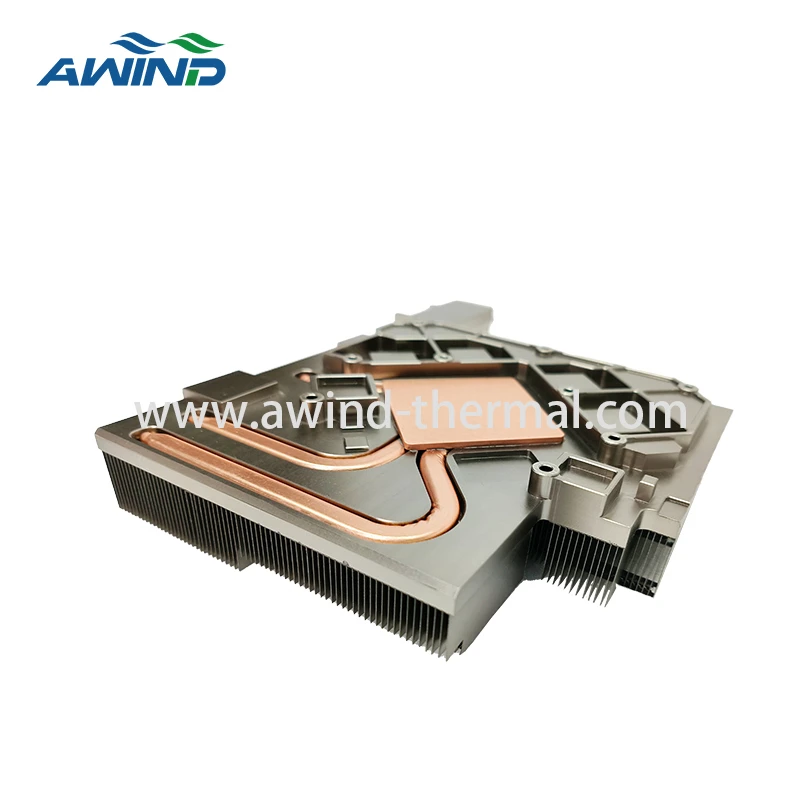

This custom heat sink combines copper heat pipes with an aluminum zipper fin assembly for efficient heat transfer and heat dissipation.
The copper heat pipes are installed into CNC-machined grooves in the aluminum base and bonded by reflow soldering. Heat is transferred through the heat pipes to the zipper fins, where the large fin surface area helps dissipate heat into the surrounding air.
The heat pipe layout, base dimensions, fin geometry, and surface treatment can be customized according to customer requirements.
Product Specifications：
| Item | Specification |
|---|---|
| Product Type | Zipper Fin Heat Pipe Heat Sink |
| Heat Sink Material | Aluminum |
| Heat Pipe Material | Copper |
| Base Plate | CNC Machined Aluminum |
| Heat Pipe Installation | CNC-Grooved Base |
| Joining Process | Reflow Soldering |
| Fin Type | Zipper Fin |
| Dimensions | Customizable |
| OEM / ODM | Available |
Key Design Features：
1.Copper Heat Pipes for Efficient Heat Transfer
Copper heat pipes provide an efficient thermal path for absorbing and transferring heat away from the heat source and distributing it toward the fin assembly.
2.CNC-Grooved Aluminum Base
The aluminum base plate is CNC machined with precision grooves for positioning and integrating the heat pipes. This structure helps create a direct thermal path between the heat source, heat pipes, and heat sink.
3.Reflow Soldered Assembly
The heat pipes are bonded to the CNC-machined base using reflow soldering. This manufacturing process provides consistent joining across the heat pipe and base interface.
4.High-Surface-Area Zipper Fins
The zipper fin structure provides a large effective surface area within a compact heat sink design, helping transfer heat from the assembly to the surrounding air.
5.Aluminum-Copper Combination
The combination of an aluminum fin assembly and copper heat pipes balances thermal performance, weight, and manufacturability. The copper heat pipes handle heat transfer, while the aluminum fins provide a large surface for heat dissipation.
6.Custom Manufacturing
Heat pipe quantity, layout, base dimensions, fin geometry, overall dimensions, and surface treatment can be customized according to your thermal and mechanical requirements.
Similar Products
Conclusion
Need a similar custom heat sink? Upload your drawing or contact us today. Our team will review your requirements, offer tailored suggestions, and get back to you with a competitive quote-fast. Let's solve your thermal challenge together.
