Product Introduction

Heatsink for TO263



Surface mount (Top mount) heat sink for D²PAK(To-263) package semiconductors remove the heat indirectly without contacting the device like traditional through hole heat sinks. The device and the heat sink are soldered directly to a modified drain pad creating a thermal transfer path from package tab to the heat sink.

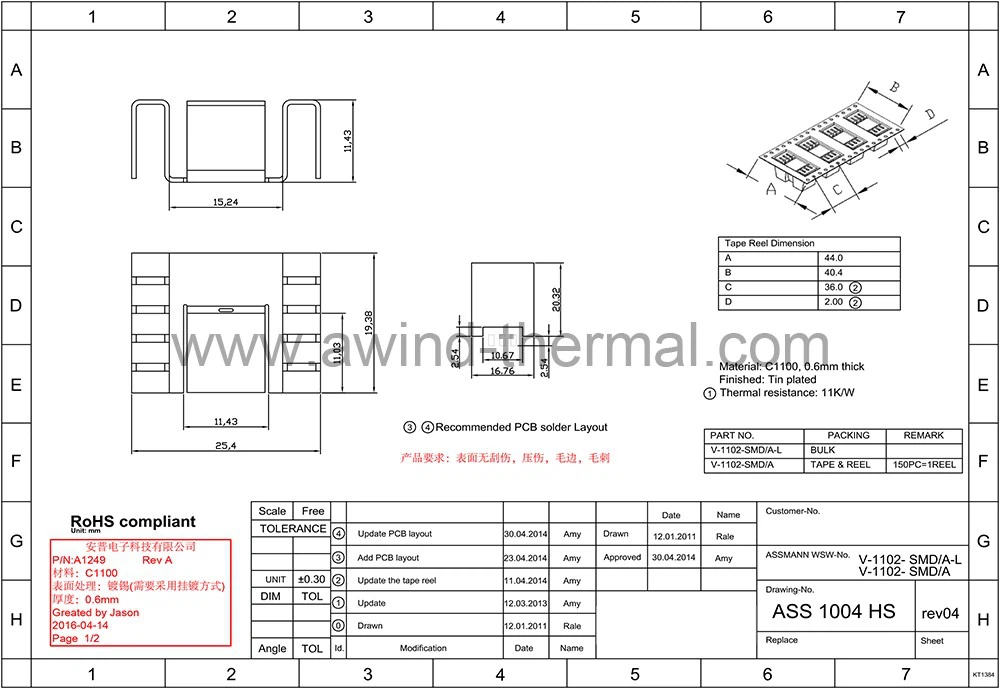

Drawing of semiconductor heat sinks (to-263 heatsink)

semiconductor heat sinks

heatsink drawing



Photos of to263 heatsink

tiny heat sinks

small heat sinks for semiconductor

A1249 heatsink
