Standard watercooling radiator with copper tube

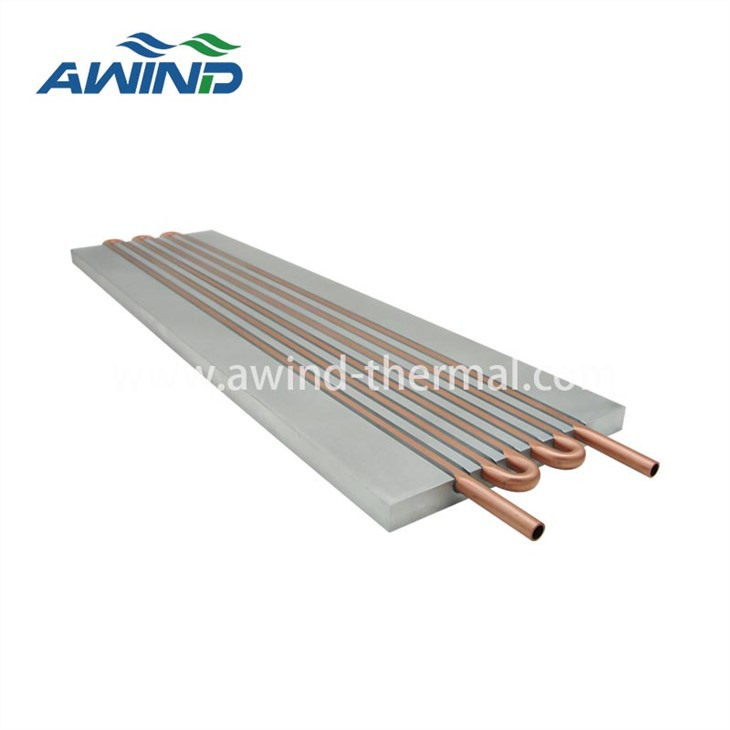

Liquid cooling cold plate with copper tube
The pressure tube liquid cooled plate is processed on the aluminum plate to create an aluminum groove. The copper tube (stainless steel tube) placed on the aluminum groove and filled with epoxy, ensuring good thermal conductivity between the copper tube and the aluminum plate. Make the copper tube and aluminum plate smooth and flat. The copper tube is connected to a continuously flowing liquid, which carries away the heat generated by the heat source.
Due to its flexibility in design and low cost, liquid cooling plate with copper pipe is highly popular.
Standard watercooling radiator with copper tube
Awind's introduction to standard products for copper tube water-cooled plates.Please refer to the information of the aluminum liquid cooling plate in the following figure.
Feel free to contact us for more information!
| Model & SPEC. | Component | Outline size(L*W)MM | Part number | Note | 3D drawing |
| COOLING PLATE 12*3.75 | AL 6061PLATE + COPPER TUBE D9.52 | 304.8*95.25 | A2194 |  |
 |
| CP10G18 | AL 6061PLATE + COPPER TUBE D9.52 | 304.8*88.9 | A2228 |  |
 |
| 4162G1U00000G | AL 6061PLATE + COPPER TUBE D9.52 | 305*177.8 | A2367 |  |
 |
| A2194 | AL 6061PLATE + COPPER TUBE D6.35 | 304.8*95.25 | A2194 |  |
 |
| CP10G14 | AL 6061PLATE + COPPER TUBE D9.52 | 152.4*88.9 | A2274 |  |
 |
| CP10G21 | AL 6061PLATE + COPPER TUBE D9.52 | 304.8*88.9 | A2222 |  |
 |
| S-CP12G05 | AL 6061PLATE + COPPER TUBE D9.52 | 304.8*127 | A2368 |  |
 |
| LCP-8PASS | AL 6061PLATE + COPPER TUBE D9.52 | 610*300mm | A1896 |  |
 |
