Copper tube water cooled plate

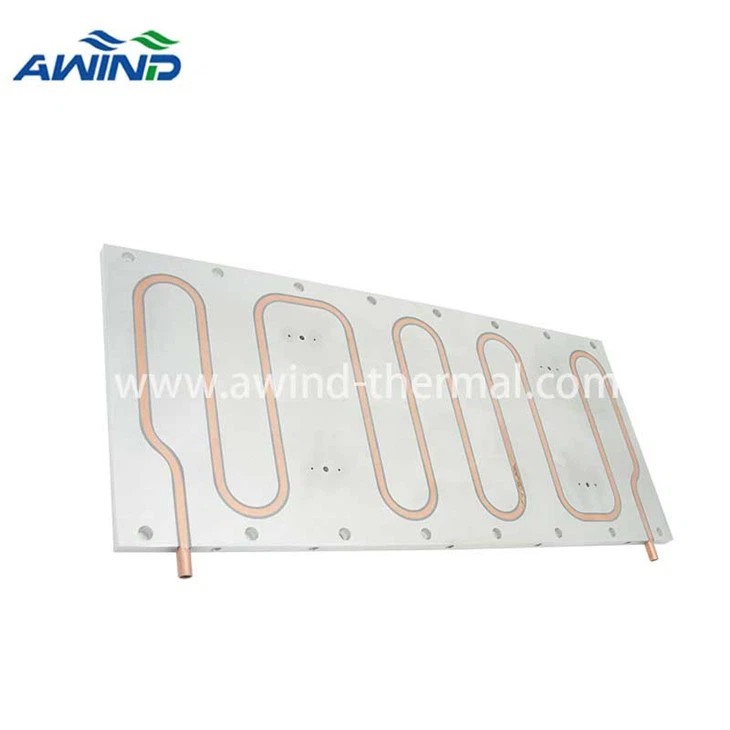

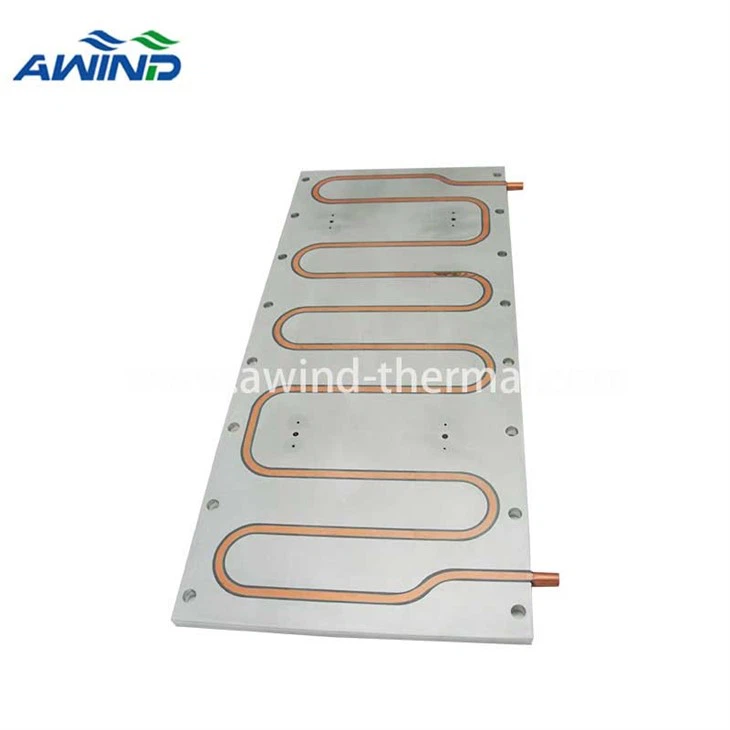

The China copper tube aluminum water-cooling plate is a water cooled heat-dissipating substrate that uses CNC to process the grooves of the corresponding water channel shape on the substrate (copper plate C1100 or aluminum plate AL6061 / AL6063), and then inserts the copper tube.
Technical characteristics:
1. Good cost-effective.
2. Low cost: There is basically no mold cost from water cooling heatsink plate, and there is no limit to the production batch.
3. High reliability: The water channel is bent and inserted into the substrate groove by a seamless copper tube. As long as the size is controlled reasonably, there is no risk of liquid leakage, and it can withstand a pressure of more than 6kg/㎡.
4. The heating element can be installed on both sides to minimize the structure.
5. The copper tube can be inserted and flattened at the same time, and the surface of the copper tube can be milled, so that the exposed surface of the copper tube is on the same plane as the substrate, so that the heating element can be in direct contact with the copper tube, and the heat can be quickly and directly conducted away.
6. The size is flexible, the maximum large size can be 1000*600mm, and the minimum thickness is 10mm
Awind's copper tube water-cooling plate has no leakage accident for many years, good flatness, roughness, parallelism, and perfect appearance, and has won high recognition from customers.
